CUSTOM FABRICATION OF A STAINLESS STEEL FLUIDIZED BED COOLER FOR THE CHEMICAL INDUSTRY

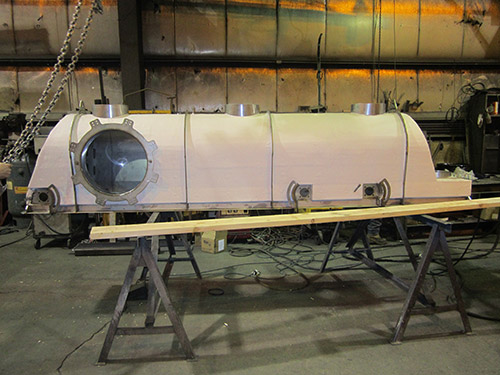

As a full-service fabrication shop, no job is too big or small for Harmony Metal Fabrication. This fluidized bed cooler project utilized many of our in-house manufacturing capabilities to the fullest, including sawing, shearing, plasma cutting, forming, drilling, and welding. Constructed of 304 stainless steel, the bed cooler was insulated to meet the requirements of the chemical application and manually assembled. When complete, this unit measured 14′ long by 4′ wide with material thickness of 2″, and weighed 4,500 lbs. Working to tolerances of ±1/16″, this custom fabricated stainless steel project met all of our high quality standards as well as exceeding the customer’s expectations.
To learn more about our custom metal forming services, including details on this fluidized bed cooler project, please see the table below or contact us today.
Custom Stainless Steel Fabrication Project Highlights
|Fluidized Bed Cooler
|This fluidized bed cooler is used within a chemical application.
|Equipment Used to Manufacture Part
|Overall Part Dimensions
|Material Thickness: 2"
|304 Stainless Steel
|In Process Testing/Inspection Performed
|Estimated Part Weight
|Industry for Use
|3D CAD Drawing
